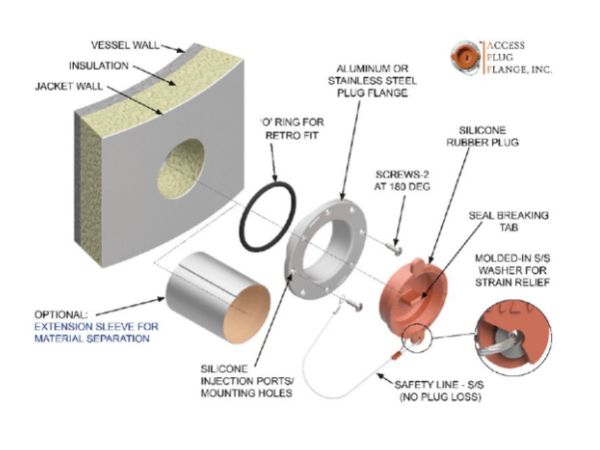

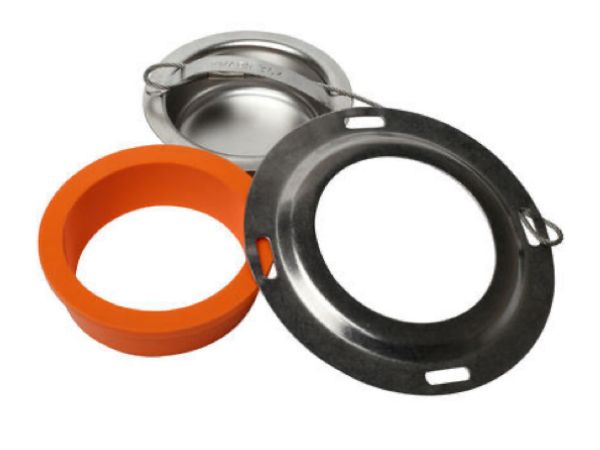

Inspection of Insulation and vessels on a regular period is essential to prolong lifetime of the equipment/system. Newly installed insulation always contain a certain content of water and often the metal jacket is damaged during maintenance job, disrupting the water-seal of the jacketing. Cutting an opening in the jacketing and sealing again with tape is not a durable solution and can cause many problems. The best way to inspect for corrosion under insulation in a non-destructive way is to install Vessel Inspection Plugs. It also provides possibility for electronically measuring the thickness of pipe/equipment/vessel walls. Inspection Plugs are available in different sizes:
- Size: 1.5”, 3” and 5” (other sizes available upon request).
- Plug Material Std MTL 40.
- Durometer Silicon Rubber.
- Temp. Range: -60 Deg C to +260 Deg C.
- Std. Colour: Black, Red (other colours available upon request).
- Eyelet Material: Aluminium (5000 Series) and Stainless Steel (304).
